Lancia Fulvia Flavia Electronic 123 Ignition Complete Distributor With Gear
Regular price
£375.06 GBP
Couldn't load pickup availability
Payment details
Safe and easy payments with all major cards and trusted methods. All transactions are encrypted for your protection.
BRAND NEW

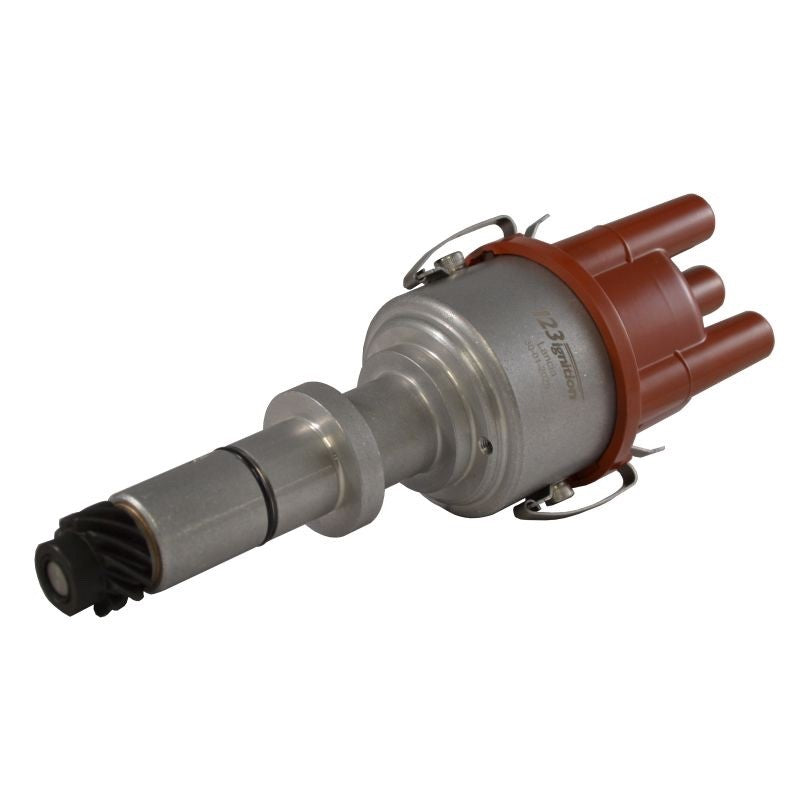

LANCIA FULVIA & FLAVIA S1 S2 S3 ELECTRONIC IGNITION DISTRIBUTOR (INCLUDING GEAR) BY 123 IGNITION
The 123/LANCIA-4-R is designed with the help of Lancia Fulvia and Flavia enthusiasts. As these cars are becoming quite rare, the manufacturer has chosen to introduce a product that offers all the necessary advance-curves.
All the required 7 advance-curves for Fulvia 1,2 and 3 and Flavia 1,2 and 3, are integrated and can be selected by means of a little switch.
It also offers:
- Automatic dwell
- Automatic power-cut after 1 second
All the required 7 advance-curves for Fulvia 1,2 and 3 and Flavia 1,2 and 3, are integrated and can be selected by means of a little switch.
It also offers:
- Automatic dwell
- Automatic power-cut after 1 second
Please read the installation manual carefully. It contains more information about static timing and the advance-curves (often found on the last page), the specifications of the 123ignition and a step-by-step description of the installation procedure.
CURVES:
| Curve | Advance starts (rpm crankshaft) |
Max. advance (rpm / degree crankshaft) |
Vacuum advance starts (mmHg) |
Vacuum advance ends (mmHg / degr.) |
Replaces | Remark |
| 0 | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | FULVIA 818.000 |
| 1 | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | FULVIA 818.100 |
| 2 | 1000 | 3200 / 15,0 | 100 | 300 / 10,0 | MARELLI S105C | FULVIA 818.100/130/140/342/303/302/282 |
| 3 | 800 | 5400 / 20,0 | 100 | 300 / 10,0 | MARELLI S139A | FULVIA 818.540 & var.1016 mot. |
| 4 | 600 | 4000 / 26,0 | 100 | 300 / 10,0 | MARELLI | FLAVIA 815.000/200/315.000 |
| 5 | 600 | 3700 / 24,0 | 100 | 300 / 10,0 | MARELLI | FLAVIA 815.100/300/500 |
| 6 | 500 | 5000 / 24,0 | 100 | 300 / 10,0 | MARELLI | FLAVIA 815.400 |
| 7 | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | FULVIA 818.000 |
| 8 | 500 | 5000 / 26,0 | 100 | 300 / 10,0 | MARELLI S102D | 820.000 / 200 |
| 9 | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S102D | 820.000 / 200 |
| A | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | 818.000 / 100 |
| B | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | 818.000 / 100 |
| C | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | 818.000 / 100 |
| D | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | 818.000 / 100 |
| E | 1200 | 4000 / 24,0 | 100 | 300 / 10,0 | MARELLI S105B | 818.000 / 100 |
| F | 500 | 4000 / 23,0 | 100 | 300 / 10,0 | MARELLI S105B | FULVIA |
We also stock many other Fiat, Lancia and Alfa Romeo parts - please do not hesitate contacting us if you're looking for something you can't find on here!
